Powering Every Vision with Reliable LED Display Solutions
Powering Every Vision with Reliable LED Display Solutions
The COB LED Display is a high-performance indoor fine-pitch LED display designed with advanced Chip-on-Board (COB) technology. Unlike traditional LED displays, the surface is directly composed of LED chips, providing improved protection, enhanced durability, and a smoother visual experience.
With pixel pitches of P0.93, P1.25, and P1.56 and a popular 600×337.5mm cabinet size, this display delivers ultra-clear images for high-end indoor environments where detail, reliability, and seamless presentation are essential.
The COB structure provides excellent stability with advantages including lightweight design, dust prevention, moisture resistance, low power consumption, and smooth image performance without graininess.

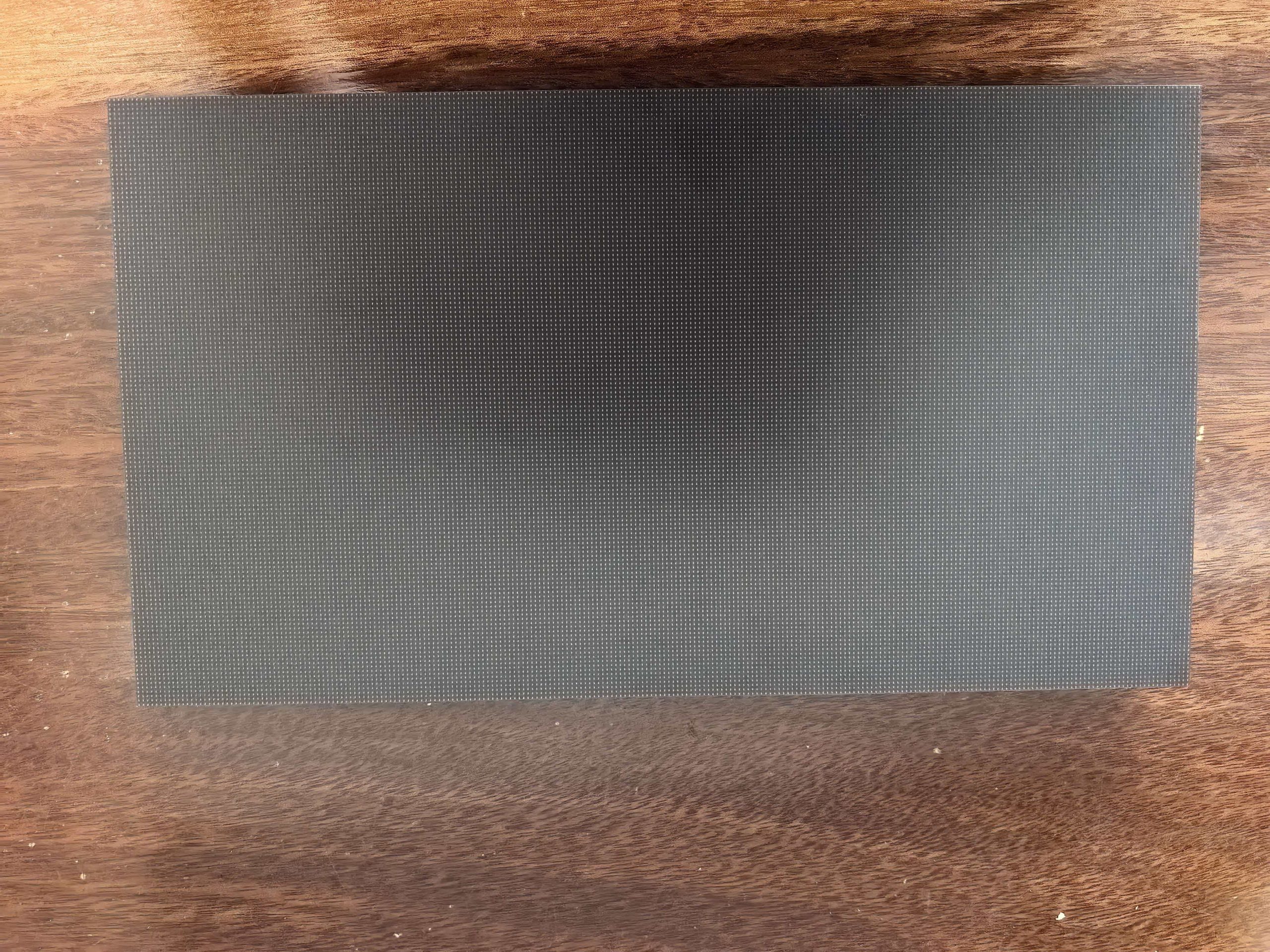

The display adopts COB technology where the module surface is directly composed of LED chips, eliminating traditional lamp beads and improving protection, reliability, and display consistency.
Available in P0.93, P1.25, and P1.56 pixel pitches, the COB LED Display provides exceptional image detail and smooth visuals, making it ideal for close-viewing indoor applications.

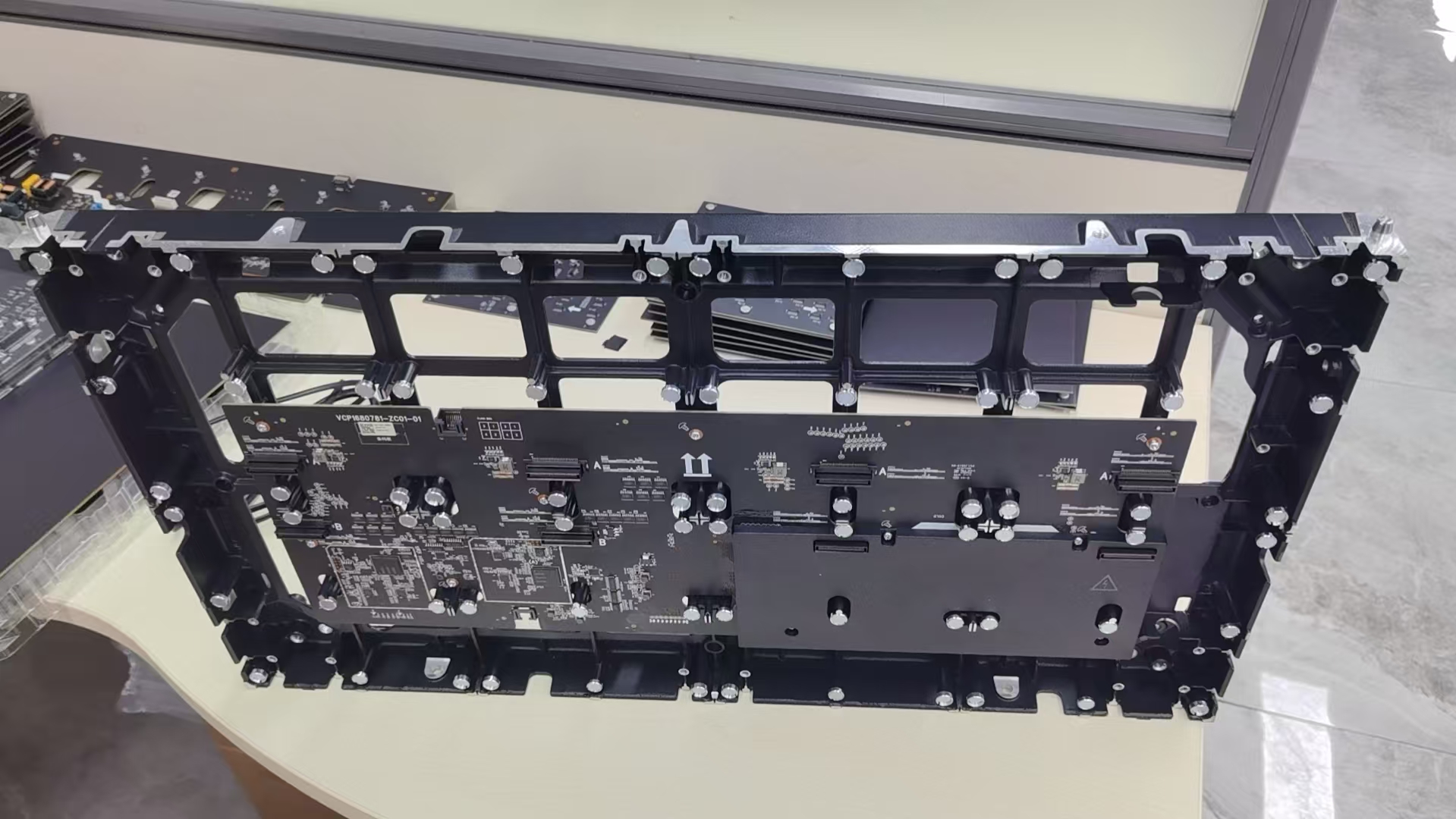

The cabinet adopts a professional 16:9 ratio design with a die-cast aluminum structure, supporting clean installation and excellent visual proportion for modern indoor display projects.
The COB display features a compact cabinet structure with a thin module design. The module thickness is only 2mm, helping reduce installation space requirements while maintaining excellent performance.
The product is designed with energy efficiency in mind, providing low power consumption while maintaining stable operation for long-term indoor usage.
The COB surface structure improves protection against dust and moisture, making the display more reliable for professional indoor environments.

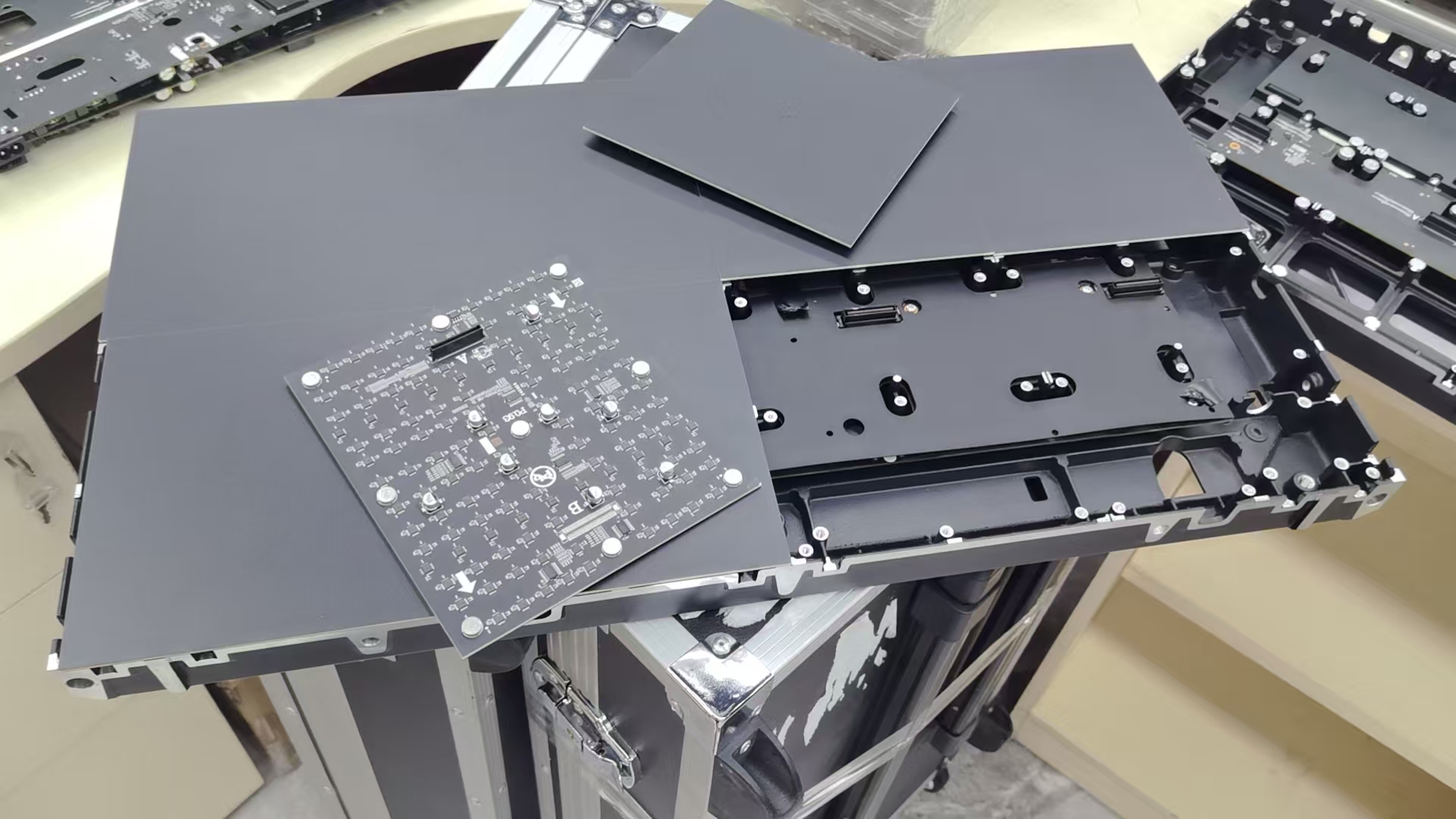

The module supports magnetic front maintenance. A magnetic tool can quickly remove the module from the cabinet, making installation and maintenance more convenient.

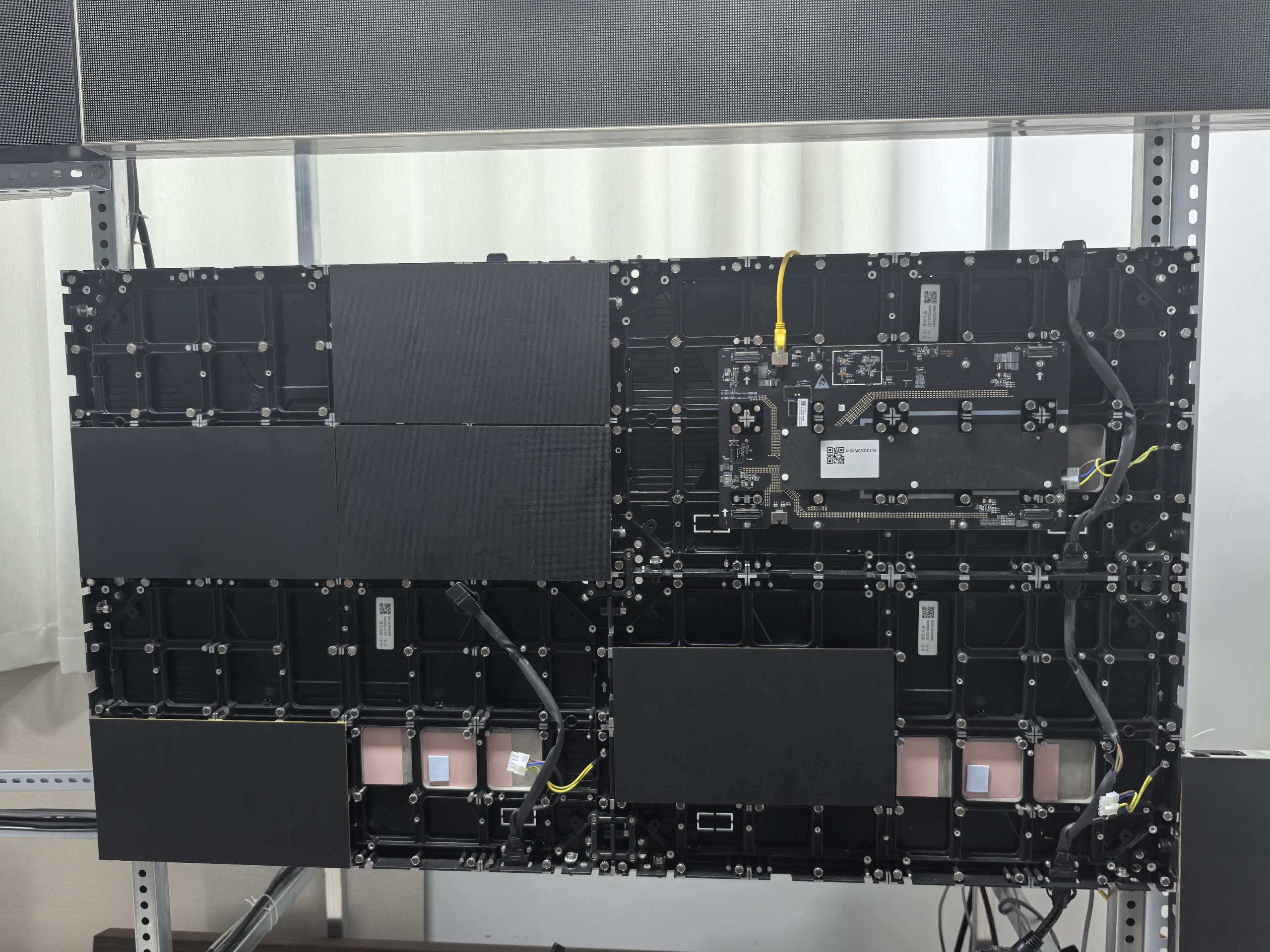

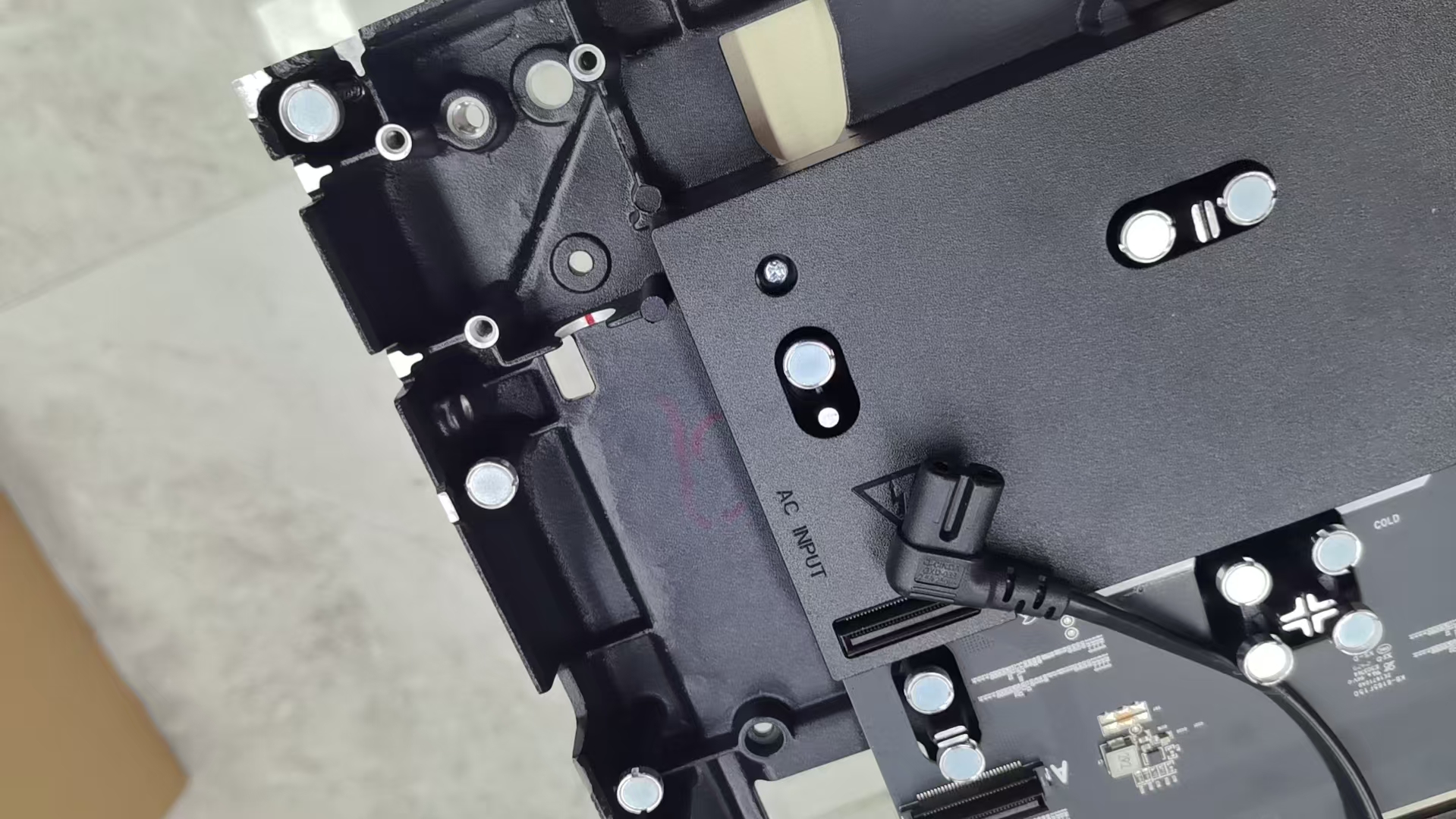

The cabinet design supports dual backup power and receiving card configurations, improving system stability and reliability for critical applications.
| Specification | Details |
|---|---|
| Pixel Pitch | P0.93 / P1.25 / P1.56 |
| Cabinet Size | 600×337.5mm |
| Module Size | 150×168.75mm |
| Module Thickness | 2mm |
| Brightness | 600~800CD |
| Refresh Rate | 3840Hz |
| Cabinet Material | Die-cast Aluminum |
| Cabinet Ratio | 16:9 |
| Maintenance Method | Magnetic Front Maintenance |
| Control Method | HDMI / WIFI Control |
The above specifications are based on the COB LED Display product specification sheet.
Provides ultra-clear monitoring visuals for command centers, security rooms, and operation management environments.
Creates premium presentation environments with sharp images, smooth video playback, and professional visual communication.
Ideal for exhibitions, showrooms, and brand experience spaces requiring high-quality close-viewing displays.
Suitable for luxury retail stores, corporate halls, museums, and indoor digital signage applications.

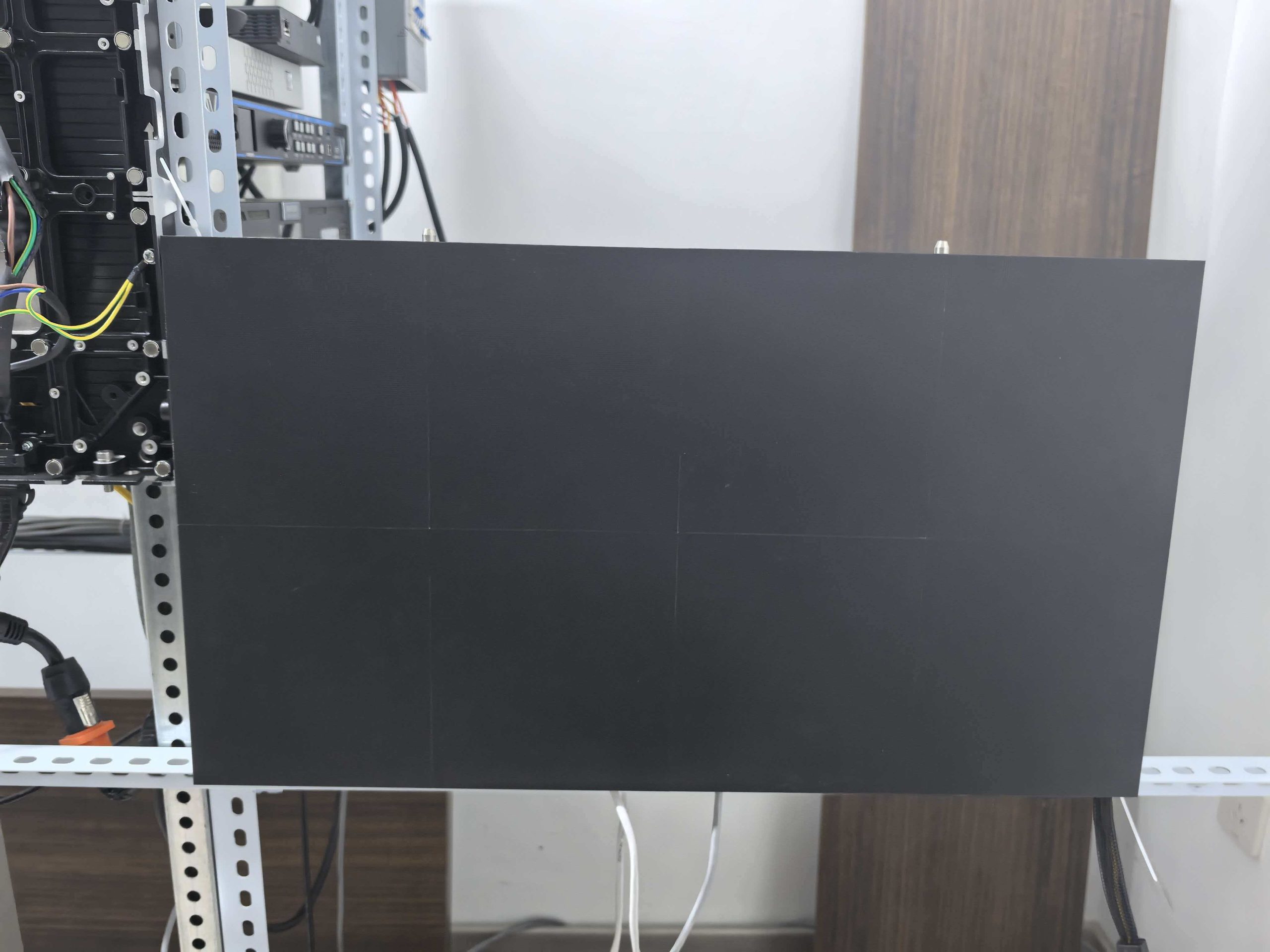

Designed for direct wall installation where a slim and seamless appearance is required.
Supports steel structure installation for larger display configurations and customized indoor projects.
The COB LED Display supports HDMI and WIFI control through tablets, computers, and mobile devices, providing flexible content management options.
Share your requirements with us, and our professional team will provide expert advice, product recommendations, and a competitive quotation.
