Pingzhou LED Rental Display Hard Connection is engineered for customers who require fast installation, high stability, and outstanding image quality for rental and event applications.
The XS Series features a smart event LED screen design with “Never Black Screen, Smart, Creative” technology, providing reliable operation for important events. It supports P2.6 and P3.9 pixel pitches, high brightness, high grayscale, and ultra-high refresh rates for professional visual performance.

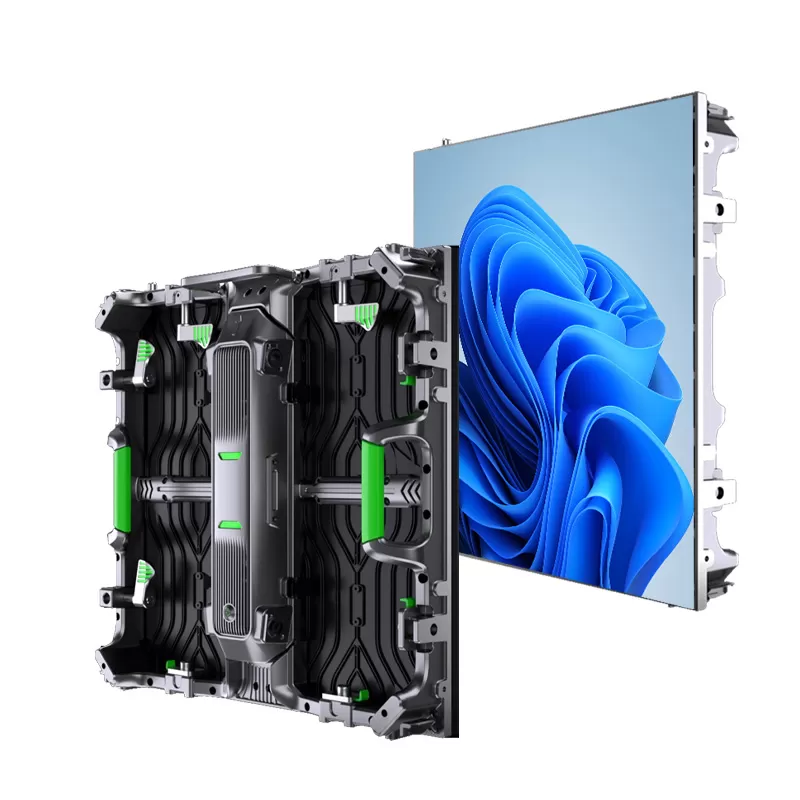

Built with a lightweight die-casting aluminum cabinet, the display supports both 500×500mm and 500×1000mm cabinet sizes, allowing flexible configurations for different stage and event requirements.
The hard connection structure provides excellent flatness, strong durability, and stable performance during frequent transportation, installation, and operation.
The integrated Power Sharing Technology (PST) allows adjacent LED panels to provide power support when an AC circuit failure occurs. This prevents sudden black screens and keeps the LED display operating normally during critical events.
The display uses high-strength die-casting aluminum cabinets designed for rental applications. The 500×500mm panel weighs approximately 7.1kg, while the 500×1000mm panel weighs approximately 13kg, making transportation and installation easier.
With up to 7680Hz refresh rate, 14–16 bit grayscale, and an 8000:1 contrast ratio, the XS Series delivers smooth images, accurate colors, and excellent performance for live events, photography, and broadcasting applications.

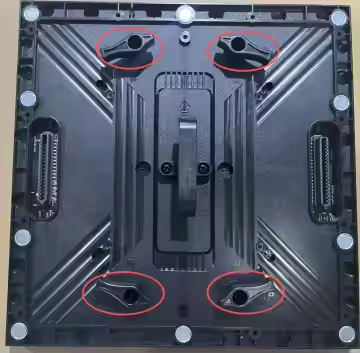

The fast locking system with instant feedback mechanism and magnetic positioning design allows operators to quickly assemble and dismantle the display, improving installation efficiency for rental projects.

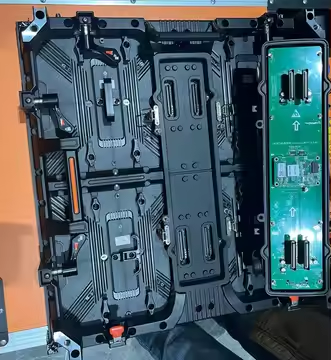

The modular design supports front and rear maintenance, while universal modules reduce spare part requirements and simplify servicing.
The hard connection cabinet supports multiple creative installation options, including 90° corner installation and curved configurations. The curve locking system enables accurate connection from -7.5° convex to +10° concave, allowing unique stage designs.
The 500×500mm and 500×1000mm cabinets can be connected horizontally and vertically, providing flexible screen sizes and customized layouts for different event requirements.
| Specification | XS260 | XS390 |
|---|---|---|
| LED Configuration | SMD1415 | SMD1921 |
| Pixel Pitch | 2.604mm | 3.91mm |
| Cabinet Resolution | 192×192 / 192×384 dots | 128×128 / 128×256 dots |
| Cabinet Density | 147456 dots/㎡ | 65536 dots/㎡ |
| Module Size | 250×250mm | |
| Cabinet Size | 500×1000×80mm | |
| Cabinet Material | Die-casting Aluminum | |
| Cabinet Weight | 7.1kg | 13kg |
| Gray Scale | 65536 | |
| Refresh Rate | 3840–7680Hz | |
| Brightness | ≥5000 nits | |
| Viewing Angle | 140° / 120° | |
| Input Voltage | AC110V / AC220V ±10% | |
| Power Consumption Max. | 800W/㎡ | |
| Protection Level | IP65 | |
| Installation Type | Hanging / Stacking | |
| Maintenance Type | Rear Maintenance | |
Technical parameters are based on the XS Series specification sheet.
Designed for concerts, festivals, and live performances where reliable operation, creative layouts, and high-quality visuals are required.
With IP65 protection and high brightness performance, the display is suitable for outdoor shows, sports events, and large public activities.
Create impressive exhibition backgrounds and promotional displays with flexible cabinet combinations and quick installation.
High refresh rate and excellent image quality make it suitable for professional camera shooting and live production environments.
The XS Series supports hanging installation with dedicated hanging beams, providing a stable solution for stage backgrounds and large event displays.
Floor stacking support brackets allow stable ground installation for exhibitions, concerts, and temporary events.
Flexible connection technology allows curved screens, L-shape structures, and creative visual designs for unique event experiences.
Complete rental accessories include:
The XS Series provides a complete event solution with supporting accessories for professional installation and operation.
Pingzhou provides a 5-year warranty for the XS Series, offering longer service coverage and reliable after-sales support for customers.
