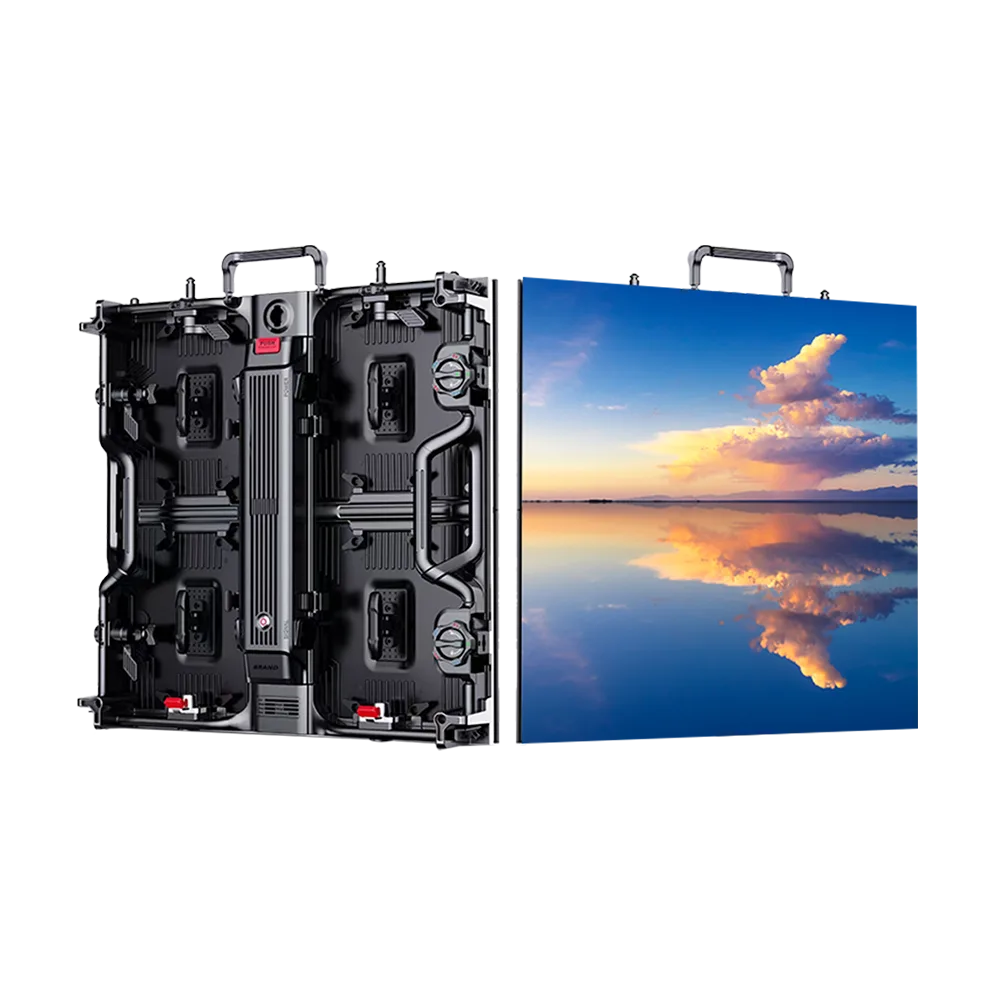

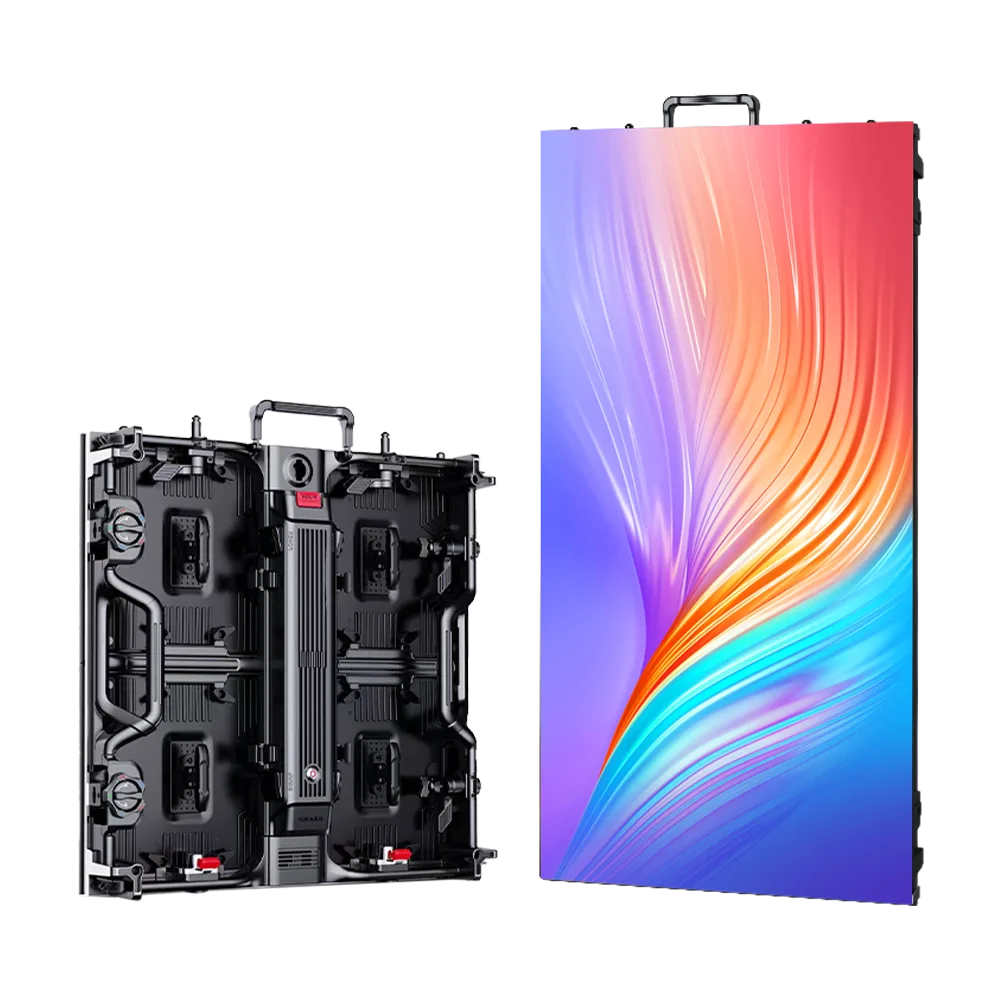

Pingzhou Rental Hard Connection LED Display is a professional LED solution designed for stage performances, exhibitions, concerts, and commercial events. Built with an ultra-lightweight die-cast aluminum cabinet and high-precision hard connection technology, it provides excellent stability, fast installation, and reliable performance for rental applications.
Supporting both hanging and stacking installation methods, this LED display delivers seamless visuals, high refresh rates, and flexible control options. It is an ideal choice for event organizers, rental companies, and production teams requiring efficient setup and outstanding visual performance.

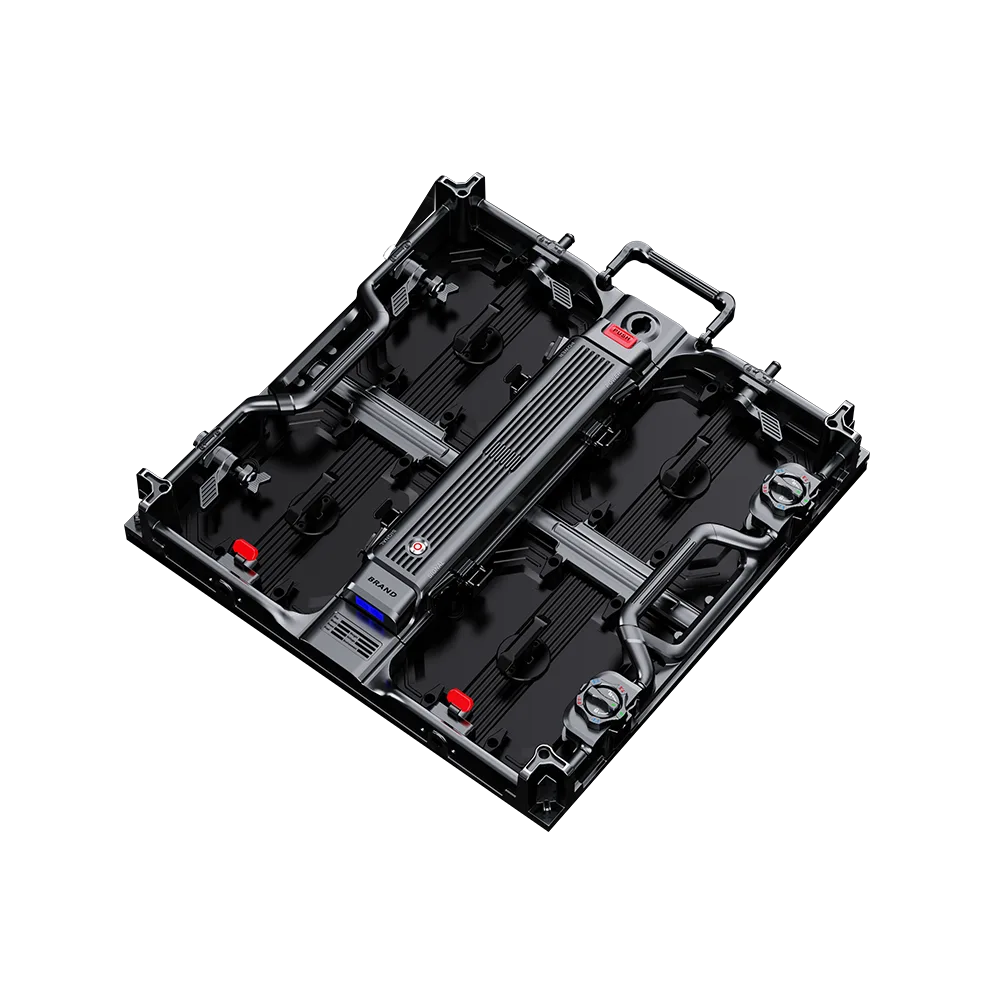

The die-cast aluminum cabinet combines lightweight construction with high strength, making transportation, installation, and dismantling easier for frequent rental projects.
The advanced hard connection design improves cabinet stability, reduces screen movement, prevents gap deviation, and ensures consistent performance during long-duration events.
High-precision cabinet positioning technology creates accurate panel alignment, delivering a smooth and immersive display surface without visible gaps.
The flexible cabinet structure supports curved and arc-shaped splicing, allowing creative stage designs and unique visual experiences.
With a refresh rate of ≥3840Hz, the display ensures smooth playback for live cameras, dynamic videos, stage effects, and professional broadcasting.

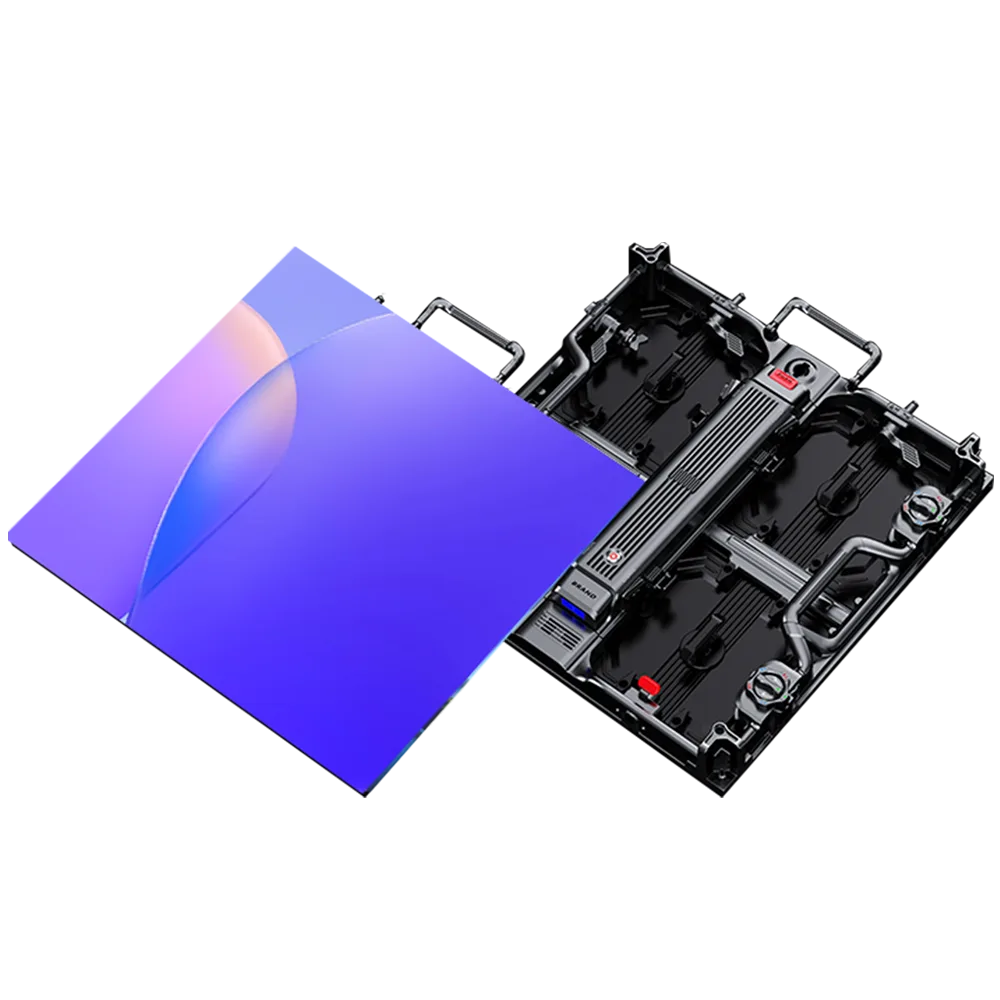

The modular cabinet design supports quick hanging and stacking installation. Front and rear maintenance options reduce service time and improve operational efficiency.
| Specification | P1.95 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|
| Pixel Pitch | P1.95 | P2.604 | P2.976 | P3.91 |
| LED Configuration | SMD1515 | SMD1415 / SMD1515 | SMD1415 / SMD1515 | SMD2020 / SMD1921 |
| Module Size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Module Resolution | 128 × 128 dots | 96 × 96 dots | 84 × 84 dots | 64 × 64 dots |
| Cabinet Size | 500 × 500 mm / 500 × 1000 mm | |||
| Cabinet Density | 262177 dots/㎡ | 147474 dots/㎡ | 112910 dots/㎡ | 65410 dots/㎡ |
| Application | Indoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Brightness | 600 cd/㎡ | 600–4000 cd/㎡ | 600–4000 cd/㎡ | 600–4000 cd/㎡ |
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight | 7.5kg / 14kg | |||
| Gray Scale | 14–16 bit | |||
| Refresh Rate | ≥3840Hz | |||
| Viewing Angle | 140° / 120° | |||
| Installation Type | Hanging / Stacking | |||
| Input Signal | HDMI / DVI / SDI / WIFI / USB | |||
| Storage Temperature | -20 ~ 80℃ | |||
| Working Temperature | -20 ~ 50℃ |

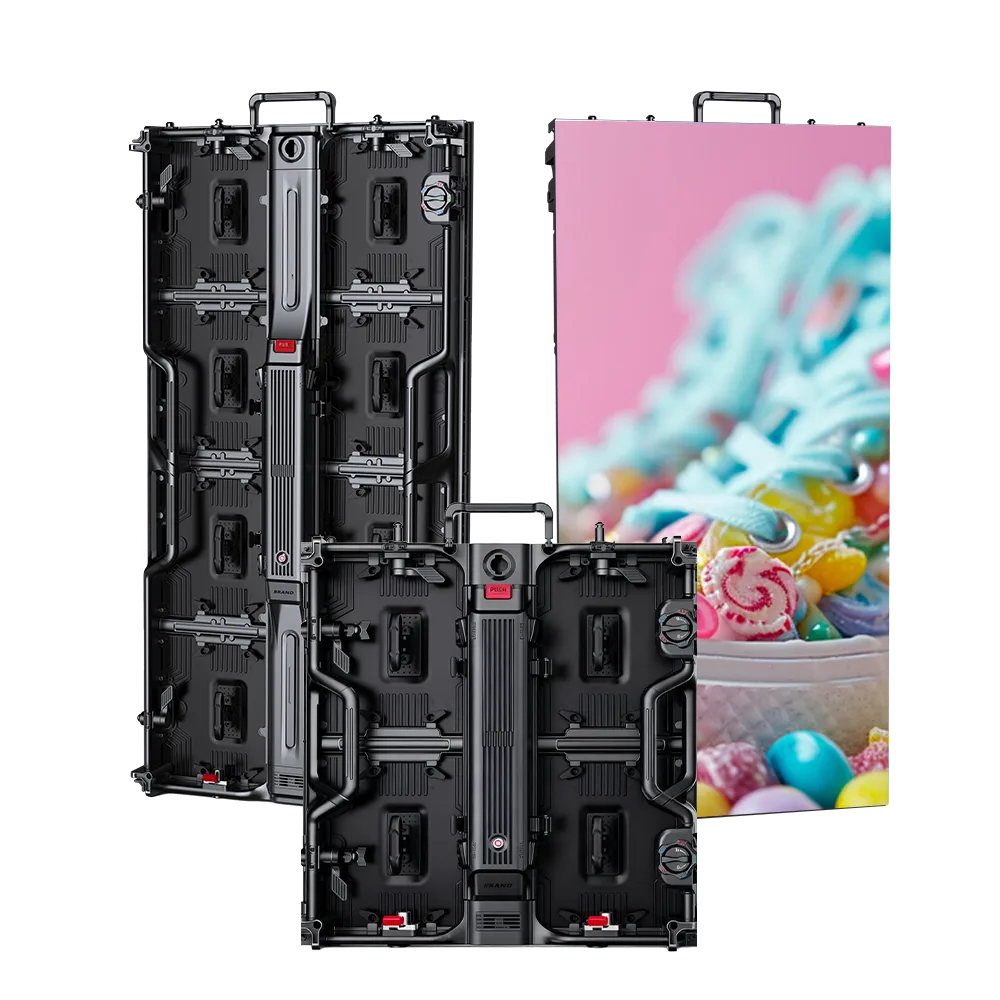

The optimized cabinet and module dimensions ensure easy transportation, quick assembly, and excellent compatibility with different stage and event environments.
The rigid hard connection system provides stronger stability compared with traditional soft connection designs, reducing shaking and improving display reliability.
Precision manufacturing ensures accurate cabinet alignment, creating a continuous and professional display surface for audiences.
Supports multiple control options:
Providing convenient operation for different event requirements.
Supports front and rear maintenance access, allowing quick inspection and replacement of components while reducing downtime.
Pingzhou Rental Hard Connection LED Display supports multiple installation methods.
Suitable for concerts, stage backgrounds, and large-scale performances.
Ideal for exhibitions, conferences, and temporary event setups.
Creates creative stage shapes and immersive visual environments.
Designed for concerts, festivals, award ceremonies, and live performances requiring reliable visual solutions.
Provides impressive visual presentations for trade shows, product launches, and brand showcases.
Enhances corporate events, promotional activities, and entertainment productions.
The complete package includes:
Share your requirements with us, and our professional team will provide expert advice, product recommendations, and a competitive quotation.
