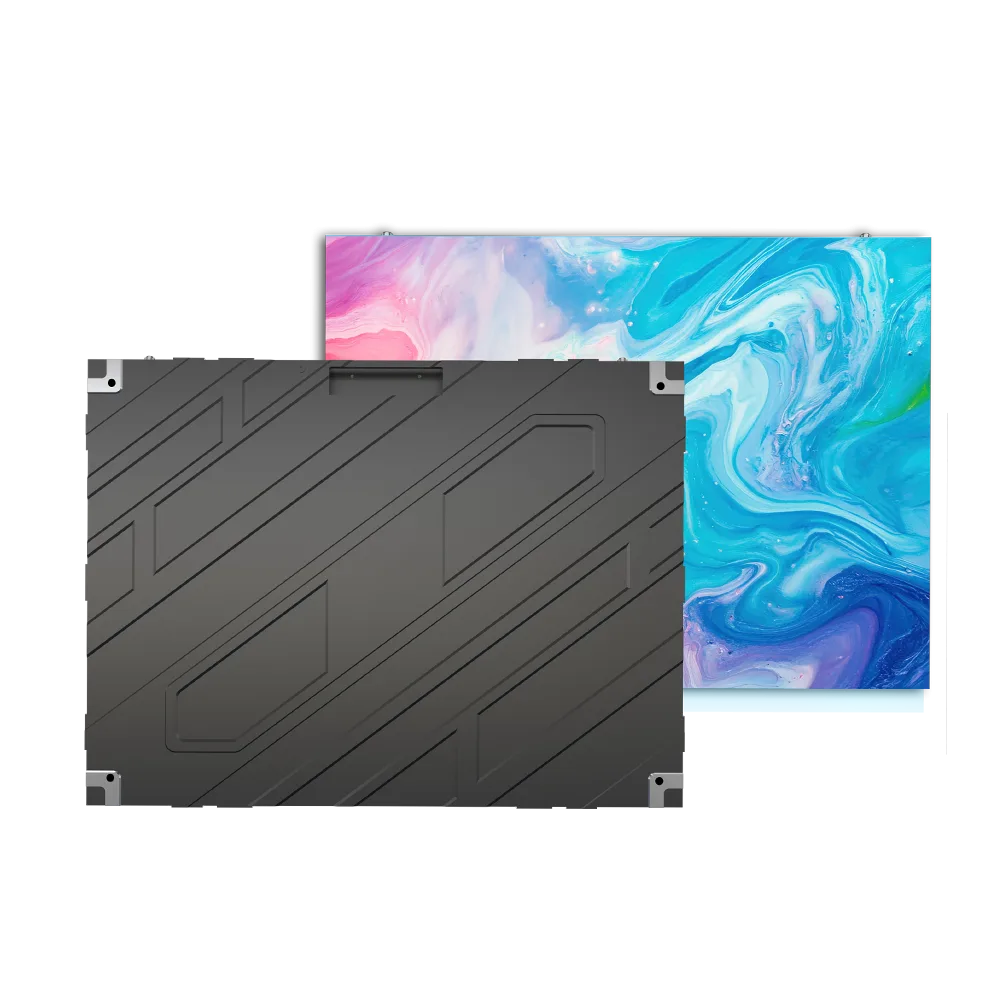

The SMD LED Display is a premium fine-pitch indoor LED display designed for applications requiring high image quality, stable performance, and elegant installation.
The 640×480mm Fine Pitch LED Display Series supports multiple pixel pitch options including P1.25, P1.538, P1.536, P1.86, P2, and P2.5, providing flexible solutions for different viewing distances and indoor environments.

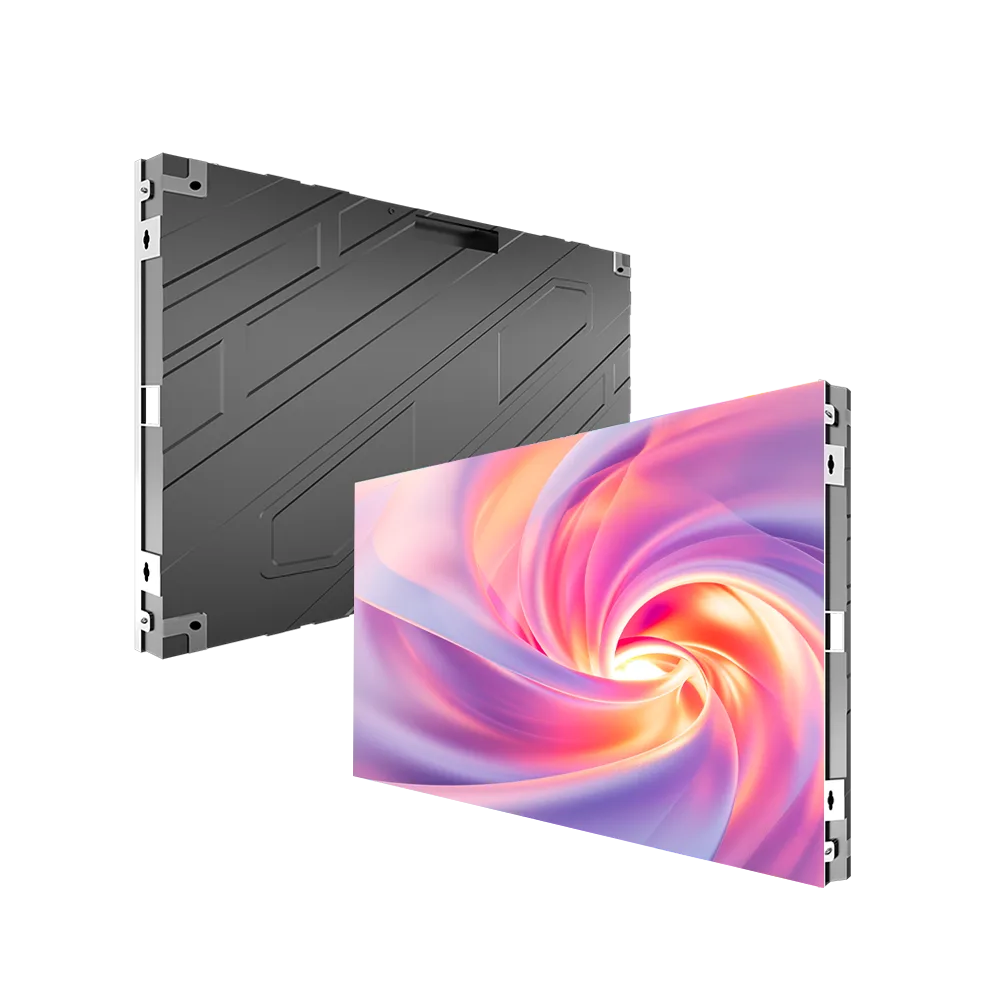

Built with a die-cast aluminum cabinet, the display features a professional 4:3 ratio design, which matches the natural viewing ratio of human vision and mainstream video content formats.
With high brightness, seamless splicing technology, magnetic front maintenance, and flexible installation methods, the SMD LED Display provides an ideal visual solution for modern indoor applications.
The display uses high-quality SMD LED technology with pixel pitches ranging from P1.25 to P2.5, delivering sharp details, smooth images, and excellent visual performance for close viewing environments.

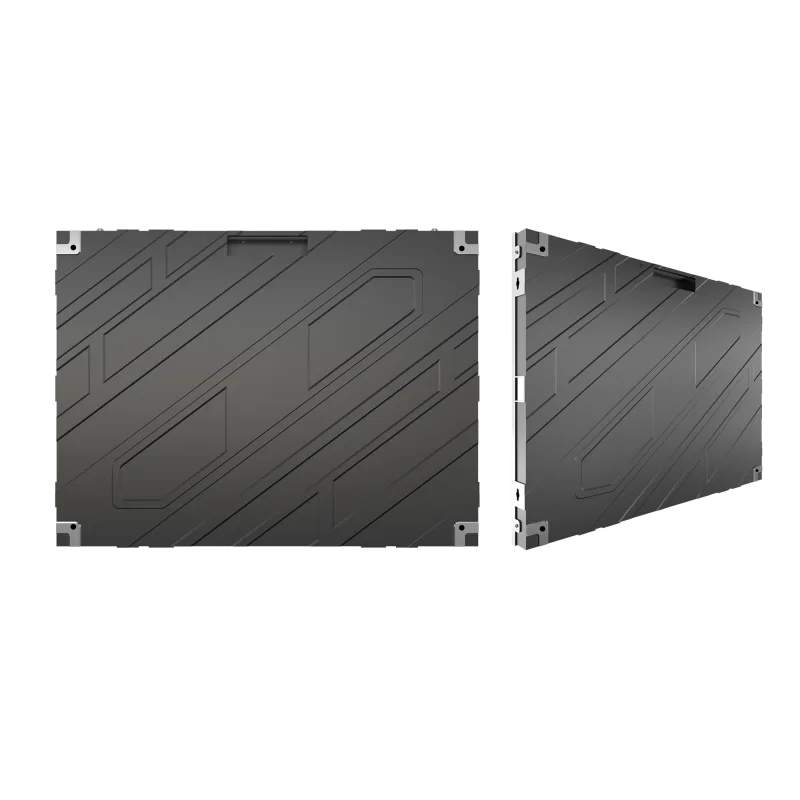

The cabinet adopts a 4:3 aspect ratio design, optimized for human viewing habits and commonly used video formats. The die-cast aluminum structure provides excellent precision, strength, and stability.

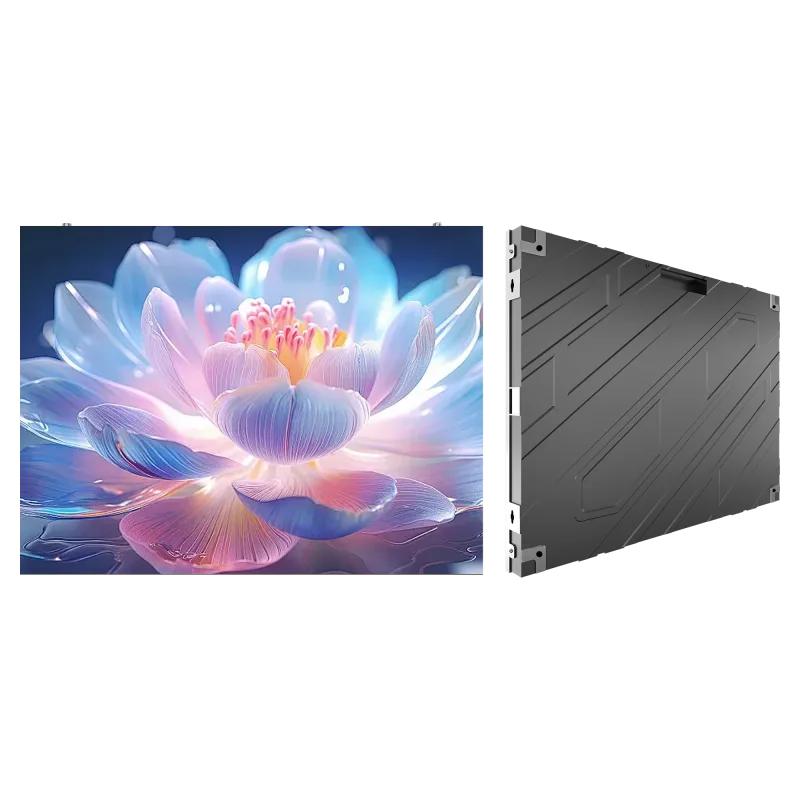

The cabinet structure features high flatness and supports unlimited splicing. This ensures the displayed image remains complete and distortion-free without visible gaps between panels.

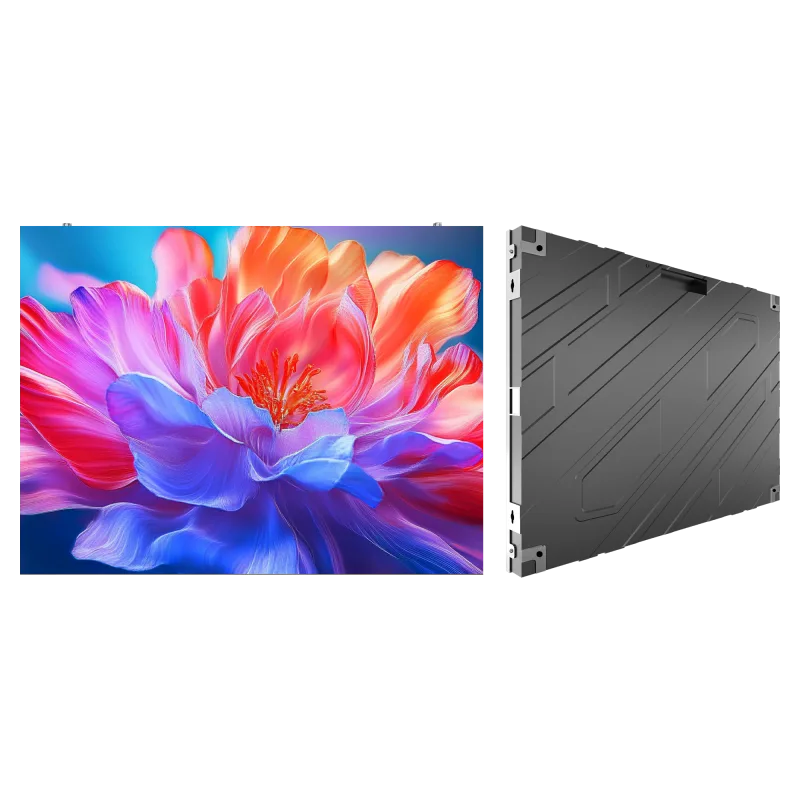

The display provides 600–800CD brightness and a 3840Hz refresh rate, ensuring clear images, smooth video playback, and excellent performance for professional indoor environments.

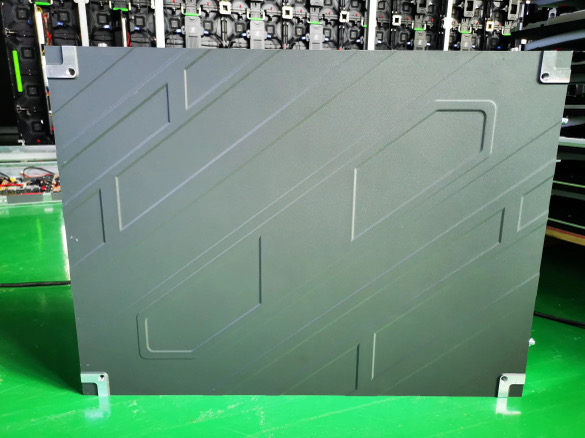

The lightweight die-cast aluminum cabinet improves structural stability while maintaining precise cabinet alignment for large-scale seamless LED installations.
The display supports front maintenance using a magnetic tool, allowing quick module removal from the cabinet for easier servicing and reduced maintenance time.
The system supports WIFI control through computers, tablets, and mobile phones, providing convenient and flexible content management options.
| Specification | Details |
|---|---|
| Pixel Pitch | P1.25 / P1.538 / P1.536 / P1.86 / P2 / P2.5 |
| LED Configuration | SMD1515 / SMD2121 / SMD2020 |
| Module Size | 320×160mm |
| Cabinet Size | 640×480mm |
| Brightness | 600~800CD |
| Refresh Rate | 3840Hz |
| Cabinet Material | Die Cast Aluminum |
| Cabinet Weight | 7.5kg |
| Single Cabinet Module Number | Six Modules Per Cabinet |
| Installation | Crane Girder Hoisting / Fixed Installation |
| Color | Dark Gray |
| Applicable Environment | Indoor |
| Standard Accessories | 2 pcs power connect cables, 2 pcs signal cables |
Technical specifications are based on the 640×480mm Fine Pitch LED Display specification sheet.
Provides clear and professional presentation visuals for meetings, video conferences, and corporate communication spaces.
Suitable for monitoring centers and command environments requiring detailed information display and reliable operation.
Creates immersive visual experiences for exhibitions, showrooms, and brand presentation areas.
Ideal for corporate lobbies, retail environments, museums, and indoor digital signage applications.
The display supports standalone TV-style installation for flexible indoor applications.
Suitable for direct wall installation where a clean and compact appearance is required.
Supports steel structure installation for large LED display projects requiring additional stability.
The magnetic front maintenance design allows technicians to quickly remove LED modules using a magnetic tool, improving service efficiency and reducing downtime.
The display supports WIFI connection through computers, tablets, and smartphones, allowing convenient remote content management.
