The Outdoor LED Display (Aluminum Profile Cabinet 1000×1000mm) is an advanced outdoor fixed LED display engineered for durability, energy efficiency, and superior visual performance.
The FH Series features a unique cabinet design with multiple size options, including 1000×1000mm, 1000×750mm, 1000×500mm, 500×1000mm, 500×750mm, and 500×500mm, combined with a 500×250mm module design for flexible installation.
Designed for professional outdoor environments, the display combines a slim lightweight structure, common cathode energy-saving technology, IP66 protection, modular design, fireproof construction, and front/rear maintenance support.

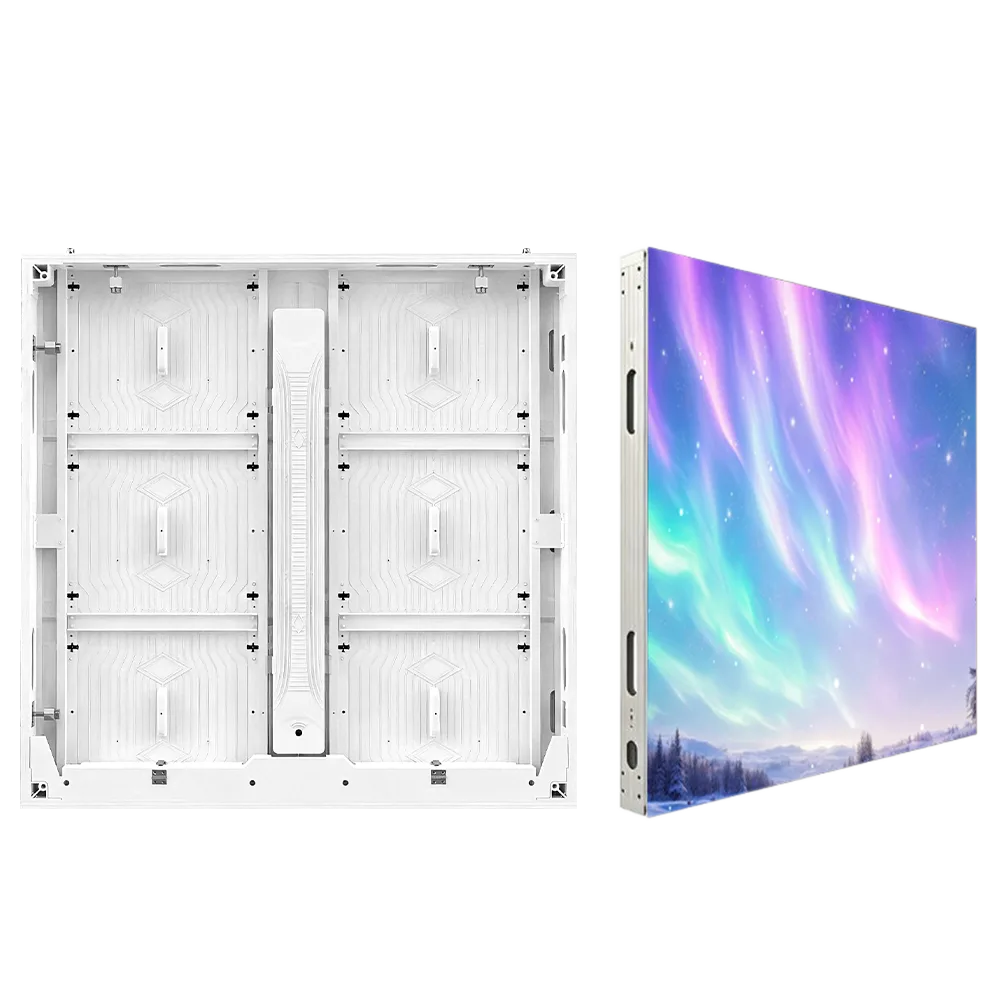

The cabinet uses an aluminum profile structure with CNC precision machining to achieve high accuracy and flatness. The 1m × 1m cabinet weighs only 25kg with an 85mm thickness, improving installation efficiency and reducing transportation costs.
The FH Series supports multiple cabinet dimensions, including:
500×500mm
500×750mm
500×1000mm
1000×500mm
1000×750mm
1000×1000mm
This modular approach allows customized display sizes for different outdoor projects.

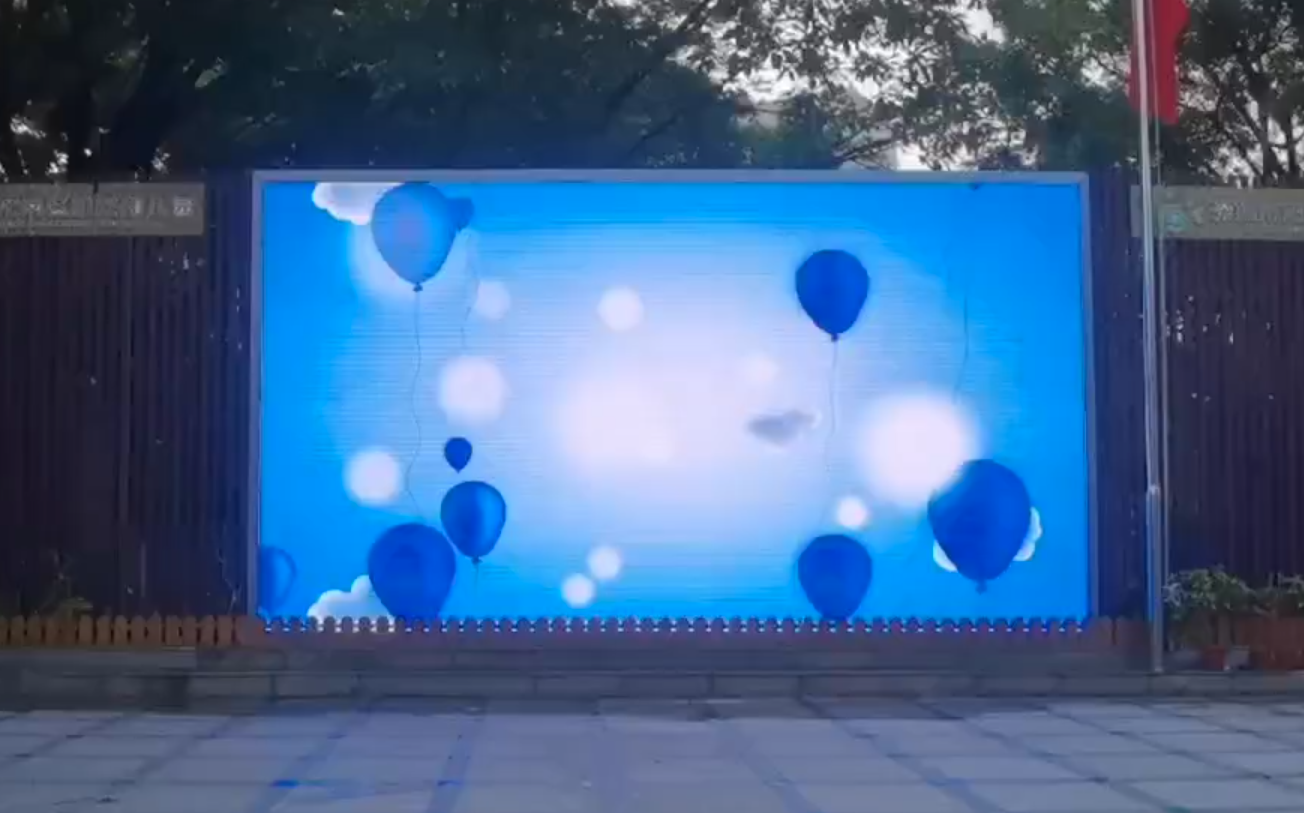

The cabinet provides IP66 protection on both front and rear sides, ensuring resistance against dust, rain, and snow. It supports direct outdoor installation without additional protective structures.
With brightness levels up to 6500 nits, the display maintains clear and vivid images under direct sunlight, making it suitable for outdoor advertising, commercial displays, and public information systems.
The display supports both front and rear maintenance methods. The module adopts a fast-lock structure, allowing easier installation, removal, and maintenance.
The FH Series integrates hidden power and signal wiring with aviation connectors and built-in tail caps, providing a cleaner appearance, improved waterproof performance, and faster installation.
The display uses multiple heat dissipation technologies, including aluminum modules, double-layer power supply boxes, heat dissipation fins, and optional receiver card cooling systems. These designs help reduce screen temperature and improve long-term stability.
The FH Series uses common cathode technology to reduce energy consumption and improve operational efficiency compared with traditional solutions.
The cabinet supports creative installation solutions including 90° right-angle splicing and curved splicing, enabling unique architectural LED display designs.
| Specification | FH2.97 | FH3.91 | FH4.81 | FH6.25 | FH7.81 | FH10.42 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm |
| SMD Type | 1415 | 1415 | 1921 | 2727 | 2727 | 2727 |
| Module Size | 500×250mm | |||||
| Cabinet Size | 1000×1000×85mm / 87mm | |||||
| Cabinet Material | Aluminum Profile Cabinet | |||||
| Cabinet Weight | 25kg | |||||
| Maintenance Method | Front & Rear Maintenance | |||||
| IP Rating | IP66 | |||||
| Brightness | ≥5000 nits | ≥5500 nits | ≥6000 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Viewing Angle | 140° / 120° | |||||
| Input Voltage | AC100~240V | |||||
| Refresh Rate | 3840/7680Hz | |||||
| Maximum Power Consumption | ≤550W/㎡ | |||||
| Average Power Consumption | ≤186W/㎡ | |||||
Technical specifications are based on the FH Series outdoor LED display datasheet.
Ideal for digital billboards, roadside advertising, and commercial media displays requiring high brightness and reliable outdoor performance.
Perfect for building facades, shopping malls, and business areas where large-scale digital communication is required.
Suitable for transportation hubs, city information systems, and outdoor communication projects.
Supports curved and right-angle installation designs for customized outdoor visual solutions.
Designed for permanent outdoor LED projects with strong structural stability and weather resistance.
Multiple cabinet sizes allow flexible screen dimensions and customized installation layouts.
