The Crystal Film Screen is a transparent LED display technology that combines lightweight design, high transparency, flexibility, and ultra-thin construction. The display can be directly attached to glass surfaces without requiring complex steel frame structures, creating a modern and minimal installation appearance.
With its transparent background display effect, the Crystal Film Screen maintains the original visual openness of glass environments while adding dynamic digital content. The flexible transparent film module supports horizontal and vertical curved surface installation, making it suitable for creative architectural applications.
Designed for modern commercial environments, it integrates perfectly with applications such as smart retail, VR/AR experiences, digital exhibitions, architectural media, and immersive visual displays.

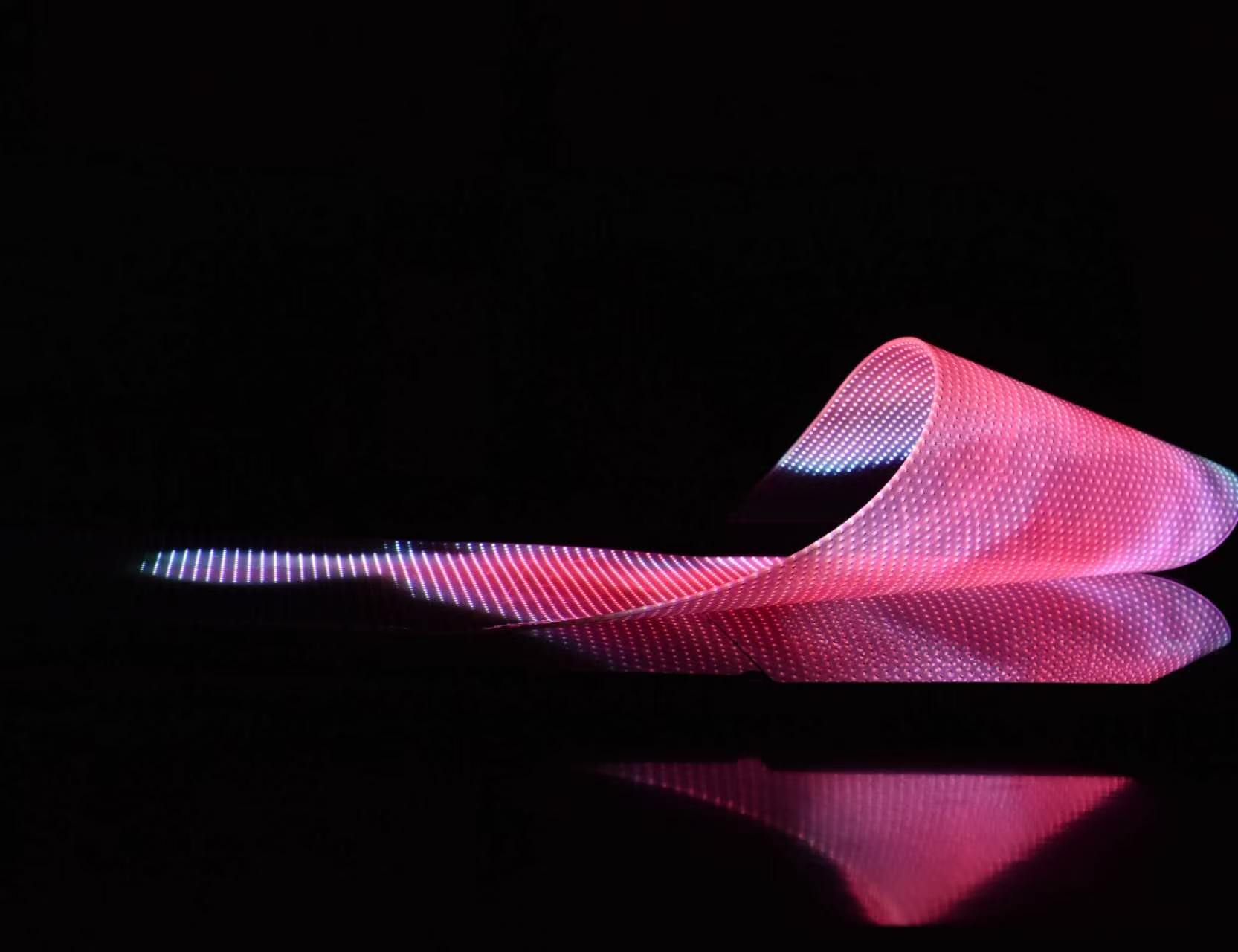

The Crystal Film Screen uses a flexible transparent film structure that provides an extremely thin and lightweight display solution. The minimal design allows the screen to blend naturally with glass surfaces while maintaining excellent visual performance.
The transparent structure allows viewers to see through the display while digital content is displayed clearly, preserving the original architectural appearance and natural lighting of the installation area.

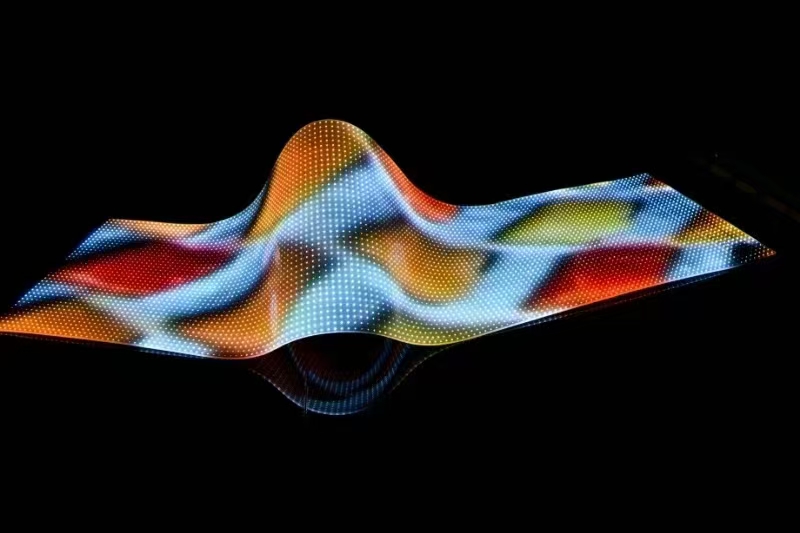

The flexible film module supports both horizontal and vertical curved surface installation. It can be directly attached to glass surfaces, providing hidden installation and excellent integration with different architectural designs.
The lightweight structure enables simple installation without traditional steel frame support, reducing installation complexity and maintaining a clean architectural appearance.
The Crystal Film Screen supports a refresh rate of ≥3840Hz and offers an LED lifespan of ≥100,000 hours, ensuring stable performance for long-term commercial applications.
| Specification | P4 | P5 | P4-8 | P6 | P8 | P10 | P20 |
|---|---|---|---|---|---|---|---|
| LED Device | WE-RGB-IC | ||||||
| LED Package | RGB + IC Integrated LED Driver | ||||||
| Pixel Pitch | 4mm | 5mm | 4×8mm | 6mm | 8mm | 10mm | 20mm |
| Module Size | 240×1000mm (Customizable) | ||||||
| Module Weight | 3.5kg/㎡ | ||||||
| Brightness | 1500cd/㎡ | 1500cd/㎡ | 1500cd/㎡ | 3000cd/㎡ | 2500cd/㎡ | 2000cd/㎡ | 1500cd/㎡ |
| Transparency | ≥82% | ≥83% | ≥84% | ≥85% | ≥87% | ≥90% | ≥95% |
| Viewing Angle | 160° ±10° Horizontal / Vertical | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Frame Rate | 60Hz | ||||||
| Operating Temperature | -20℃ ~ +55℃ | ||||||
| Storage Temperature | -20℃ ~ +60℃ | ||||||
| Input Voltage | DC5V | ||||||
| LED Lifespan | ≥100,000 Hours | ||||||
Ideal for shopping centers, entertainment buildings, business centers, and hotels where large-scale transparent digital advertising is required on glass facades.
Perfect for retail stores, fashion shops, restaurants, communication stores, and automotive showrooms to create attractive storefront digital experiences.
Suitable for offices, exhibition centers, 4S automotive stores, boutiques, and commercial spaces requiring transparent digital communication.
Used in airports, railway stations, metro stations, and other public environments for digital signage and information display.
Suitable for exhibitions, product launches, automotive shows, promotional events, and temporary advertising installations.
The Crystal Film Screen can be directly attached to glass surfaces, creating a clean and minimal installation without large structural frameworks.
The flexible transparent film module supports curved installation designs, allowing creative architectural applications.
Suitable for hanging applications in exhibition halls, product launches, and commercial display environments.
The Crystal Film Screen supports stable LED control solutions with smooth video playback, high refresh performance, and flexible content management for different applications.
